Welcome to RTEC INSTRUMENTS
We share a philosophy that embraces collaboration and partnering with customers and other leaders in academia and industry to ensure that our products answer real needs with innovative solutions. Our San Jose, California headquarter houses all research, development, manufacturing and factory support operations.

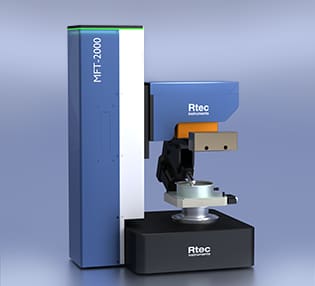

Rtec-instruments offer twenty first century new generation multi functional profilometers. Sturdy design, high end electronics, equipped with various in-situ characterization techniques, easy to use software makes these profilers a reliable, precise and user friendly tool.
- Nano and Micro Tribometer
- Universal Tribometer (Nano + Micro + Macro range)

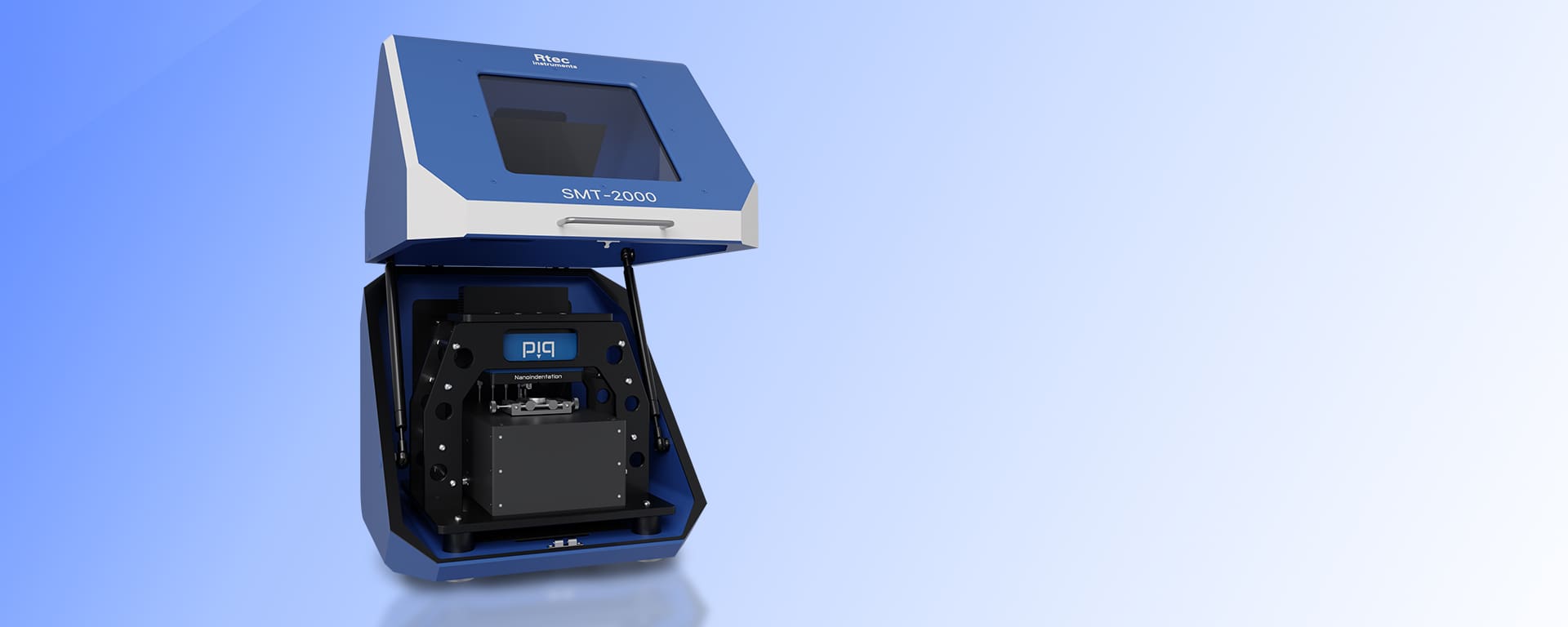

Next generation Nano Mechanical tester that can do Nano indentation, Nano Scratch and Imaging on same tester. The modular design allows it to work in nano and micro range.

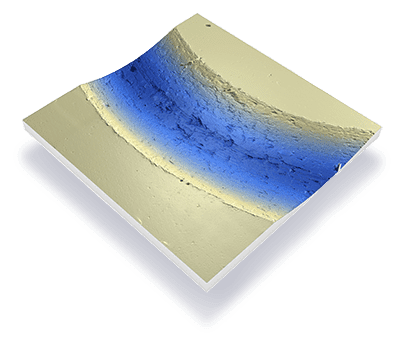

Various 3D profilometer models that can accommodate multiple techniques on same platform. Combination of techniques allows user to save cost and get advantages of both techniques. Few combinations are listed below
- White light interferometer + AFM
- White light interferometer only
- White light interferometer + Raman Spectrometer + AFM
A stress tester that can quickly create 2D and 3D map of residual stress of thin and thick films. The tester comes with multiple wavelengths, environmental chamber, advanced algorithm etc. The tester can be integrated with an AFM, optical profilometer etc.
High Temperature Indentation A unique high temperature indenter that can calculate hardness at various temperature under vacuum or inert gas atmosphere
- Upto 1600C
- High Vacuum
- Insitu imaging
- Vicker's, Rockwell
